Independently tested and guaranteed to exceed all component, permanent link, and channel margins
Patented Retention Force Technology™ (RFT) protects against tine damage and increases system longevity
For Power over Ethernet, RFT maintains contact force between plug and connector, preventing arcing from intermittent disconnects
Unique design supports tool-free termination/re-termination and requires no specialized termination tool
Short connector design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius)
Terminates from 26 to 22 AWG solid or stranded conductors for use on various cable types
Robust IDCs can withstand 20 re-termination cycles and connector contacts are tested for 750 plug-mating cycles to ensure system longevity
Available in 13 ANSI/TIA-606-C compatible colors
Select jacks supplied with interchangeable icons (voice, data, A/V, and blank, color coded to match the connector face) for easy identification and tracking of data, voice, or other functions
Jacks with internal shutter protects against dust and debris
Solid metal body dissipates 53% more heat than traditional plastic, minimizing damage from excess heat in PoE applications
Tine geometry prevents arcing damage where plug and connector make contact
Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications

gb2562884
us10151890
us10371902
usd752590

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.

Welcome

Language

SOLUTIONS

SOLUTIONS

MARKETS

LITERATURE

PARTNERS

RESOURCES

COMPANY

Welcome

Language

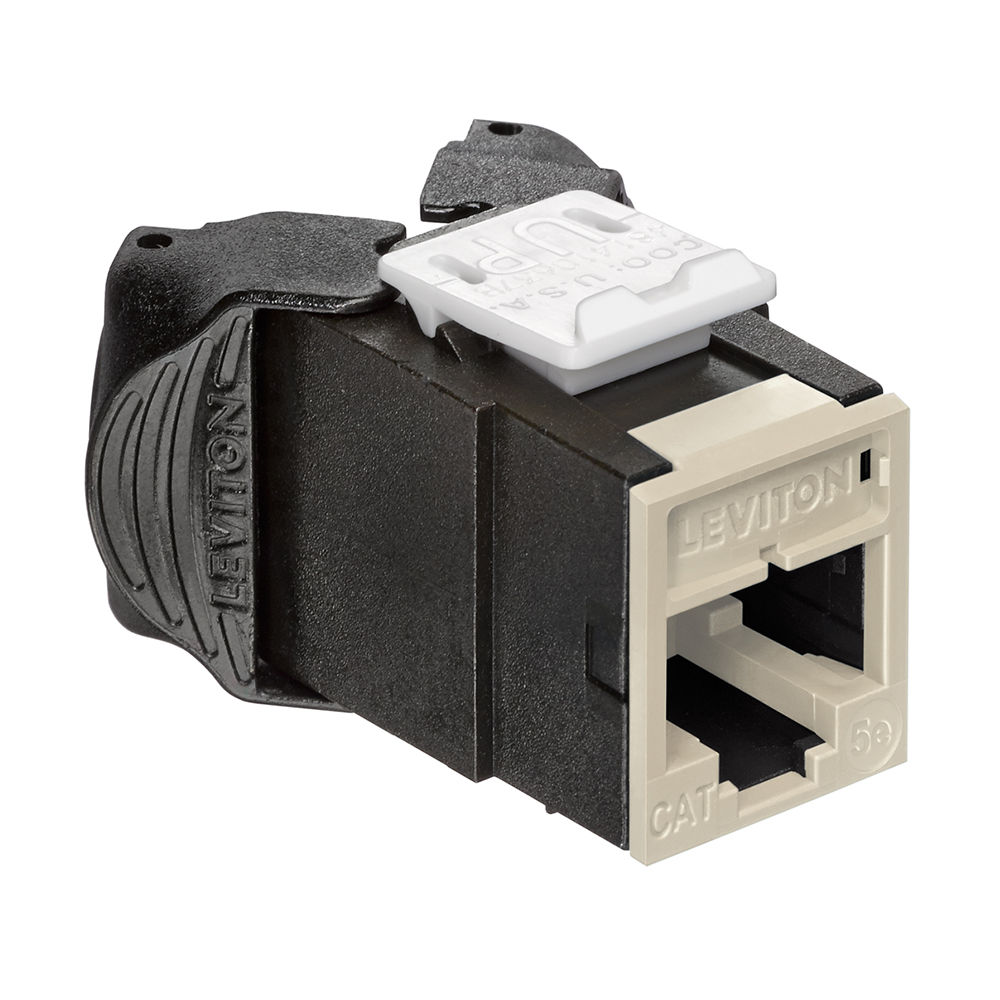

ATLAS-X1™ Cat 5e UTP QUICKPORT™ Jack, Ivory
