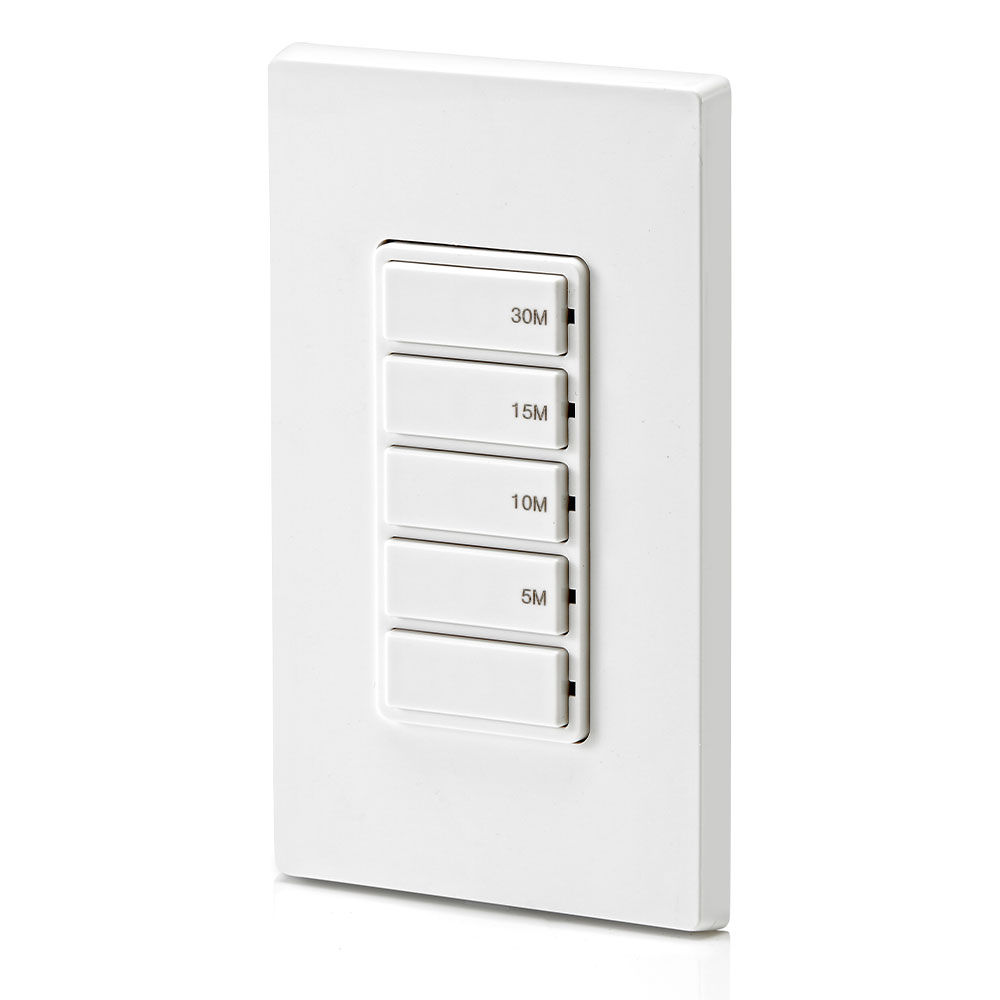

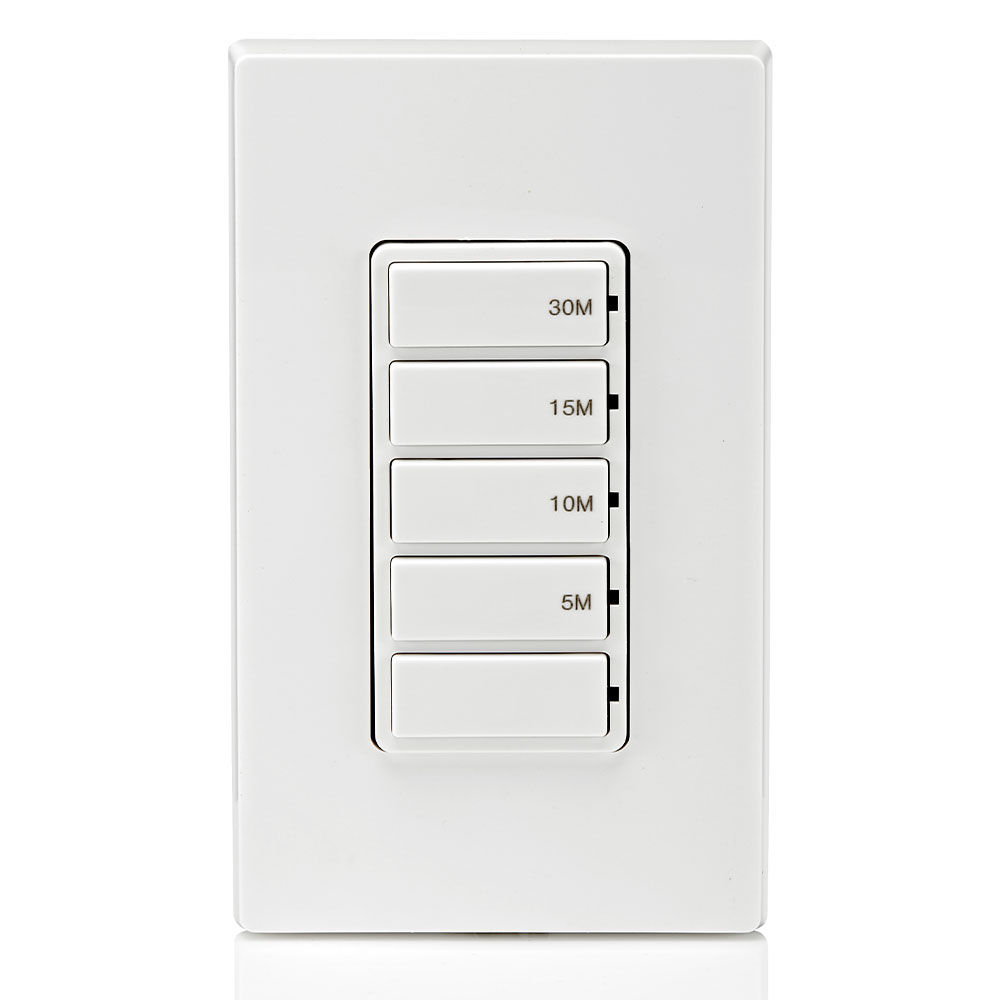

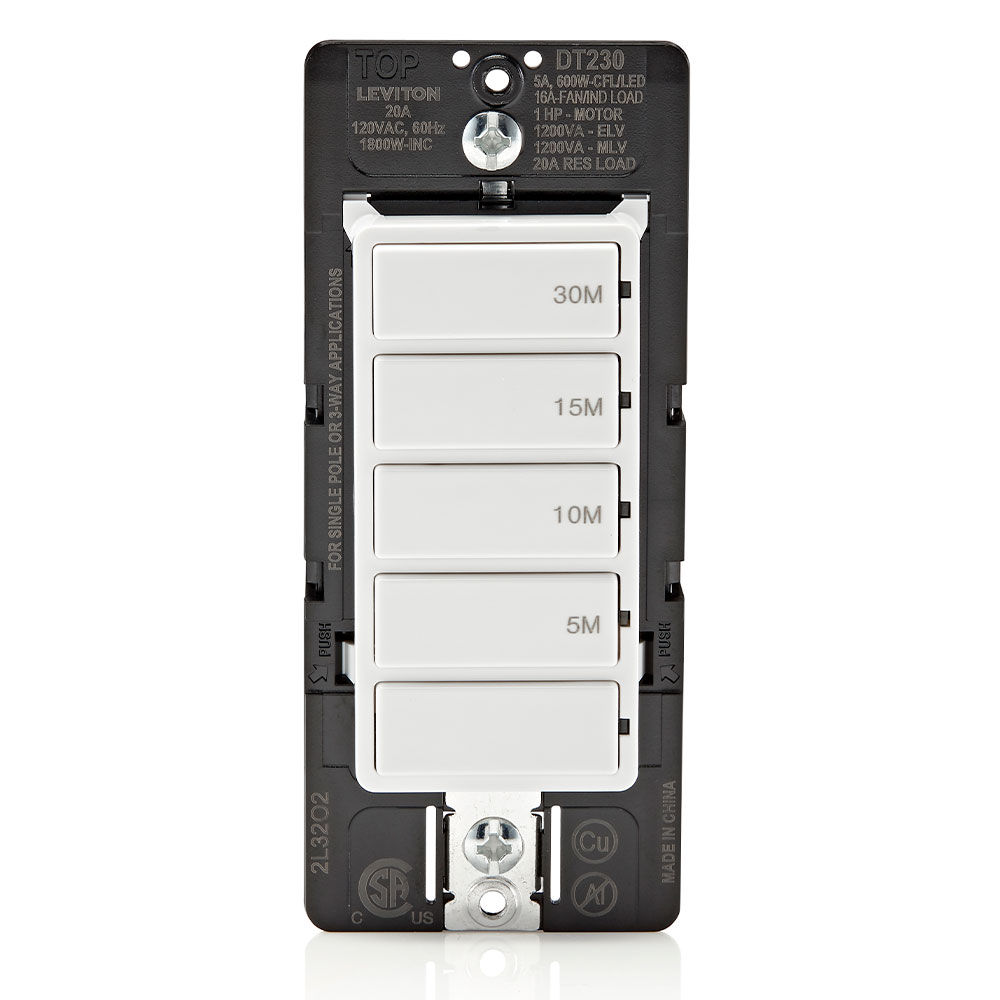

The Decora 30-Minute Countdown Timer Switch has 5 buttons with 5-minute, 10-minute, 15-minute and 30-minute preset time options and a manual off button. The larger load capacity can handle larger fixtures and fans. Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT230 Countdown Timers. 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, 1 HP/16A Fan/Motor, 20A Resistive/16A Inductive. Requires a neutral wire for i...
The Decora 30-Minute Countdown Timer Switch has 5 buttons with 5-minute, 10-minute, 15-minute and 30-minute preset time options and a manual off button. The larger load capacity can handle larger fixtures and fans. Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT230 Countdown Timers. 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, 1 HP/16A Fan/Motor, 20A Resistive/16A Inductive. Requires a neutral wire for installation, wallplate sold separately - White
CONVENIENT – designed with load capacity to handle larger exhaust fans, pumps and fixtures
ENERGY SAVING – turns off automatically when time expires
FLEXIBLE – single pole, multi-way with DD0SR Switch Companion or multi-timer with two DT230 timers
PRACTICAL – for porch and landscape lighting, interior lights, bathroom exhaust fans, heat lamps, pool pumps, hot tubs, saunas, attic fans, and more
STYLISH – easily change the color using DTKIT faceplates available in white, ivory, light almond, gray, black and brown
Compatible Bulb Type : LED | CFL | Incandescent | Halogen | Magnetic Low Voltage | Electronic Low Voltage | Fluorescent | Fan | Motor | Inductive | Resistive
Device Type : Timer Switch
Faceplate Colors : White | Ivory | Light Almond | Gray | Black | Brown
Function : Single-Pole (SP) | 3-Way | Multi-Location | Multi-Timer
Grade : Residential
Grounding : Yes
Horsepower Rating : 1 HP
Mounting Type : In-Wall
Neutral Required : Yes
Optional Faceplates : DTKIT
Power Consumption : <1 Watt
Standards and Certifications : CSA | FCC | IC
Style : Push Button
Termination : Leads
Timer Options : 30-Minute (5M, 10M, 15M, 30M)
Timer Type : Countdown
Voltage : 120 VAC
Wallplate : Not Included
Warranty : 5-Year
Wattage Rating : 600W | 1800W | 1200VA
Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally
Four preset time option buttons 5-10-15-30 min with separate off button. Press time option to turn on and will automatically turn off when time expires
600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage, 1200 VA Electronic Low Voltage, 1200 VA Fluorescent, 1 HP/16 Amp Fan/Motor, 20A Resistive/16A Inductive

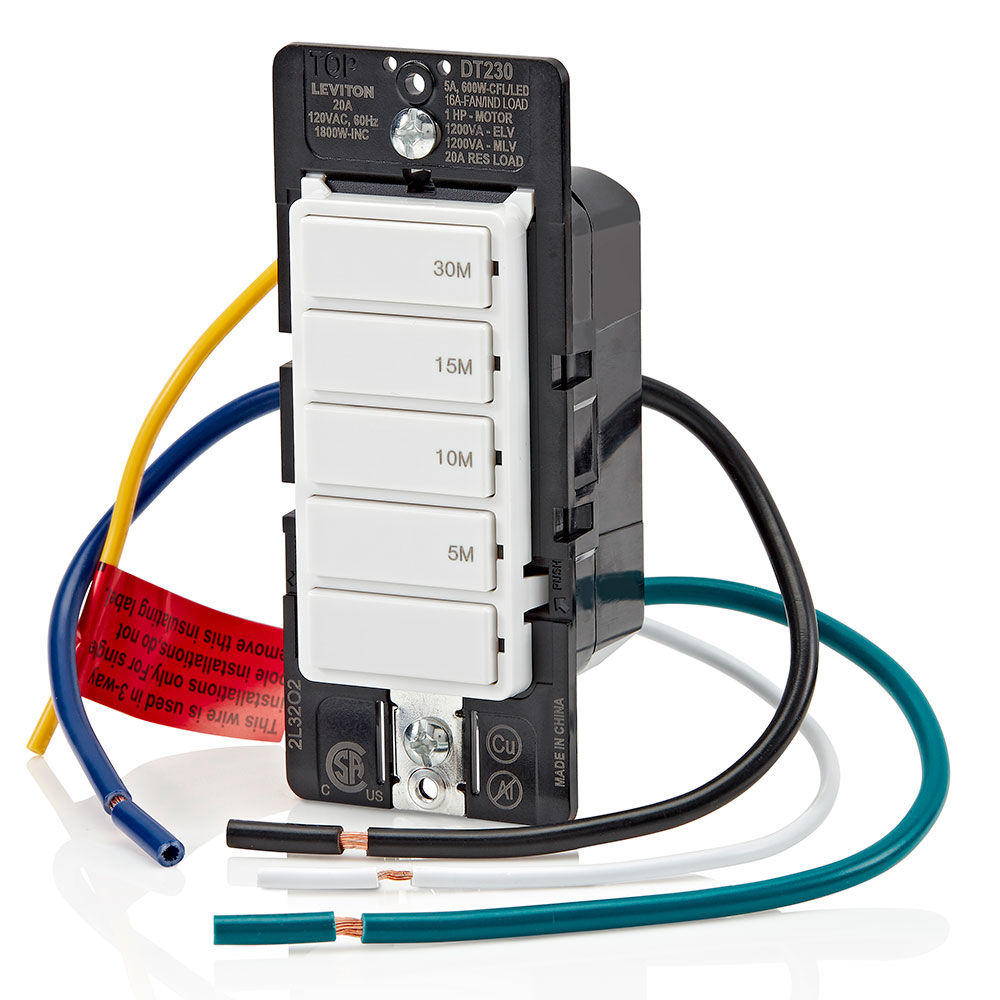

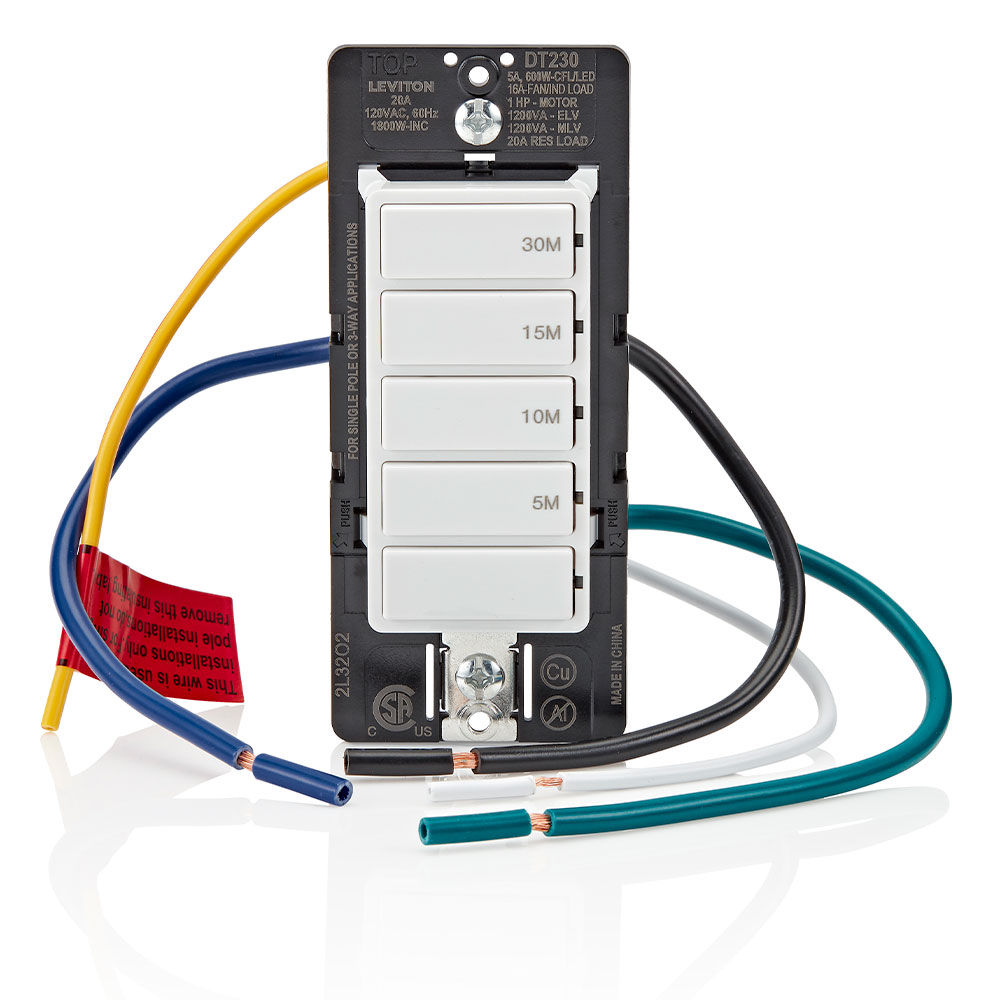

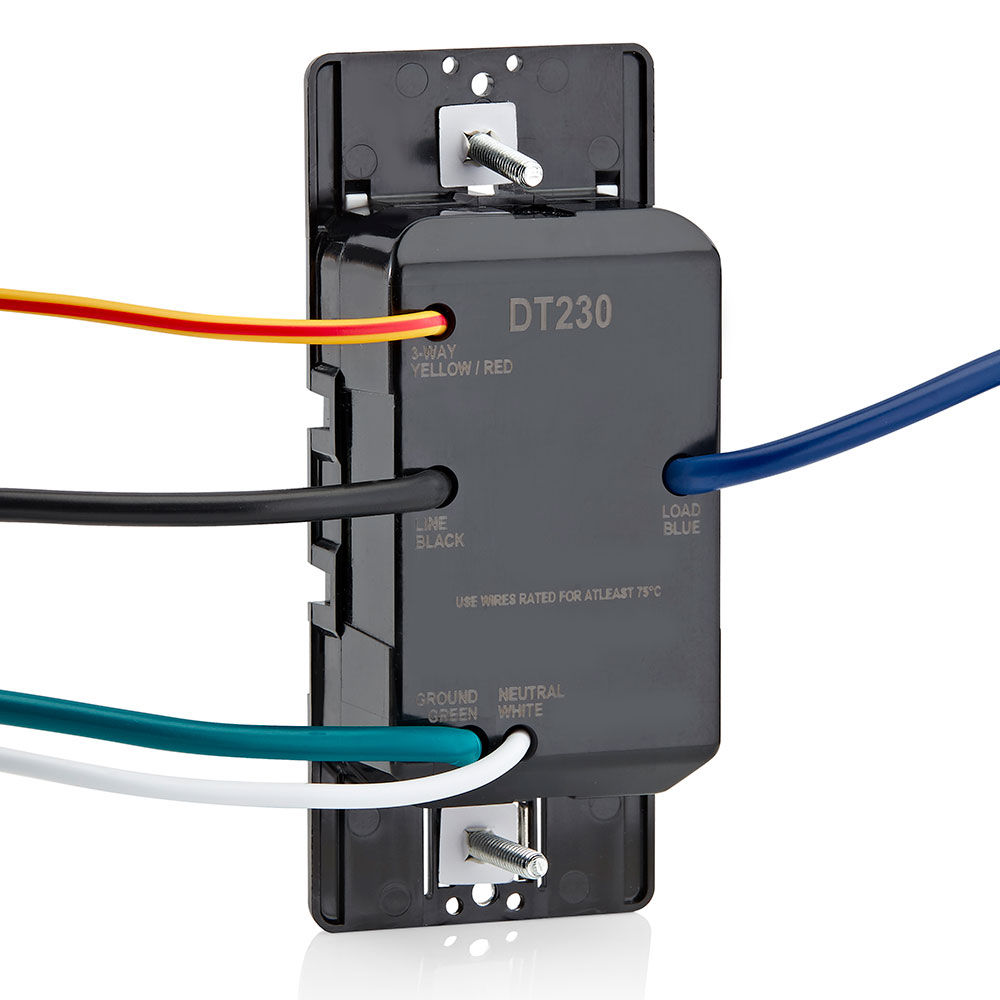

Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws
Designed with load capacity to handle larger exhaust fans, pumps and fixtures
Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT230 countdown timers
Zero Cross turn-on technology to extend the life of the switch
Manual override keeps load on for 24 hours. Override can be disabled by pressing one of the timer option buttons or off button
Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
Ideal to use for porch and landscape lighting, interior lights, bathroom exhaust fans, heat lamps, pool pumps, hot tubs, saunas, attic fans, and more
Do not use to control lights if there is no other light source in the space
ca2572204
us7683755
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
