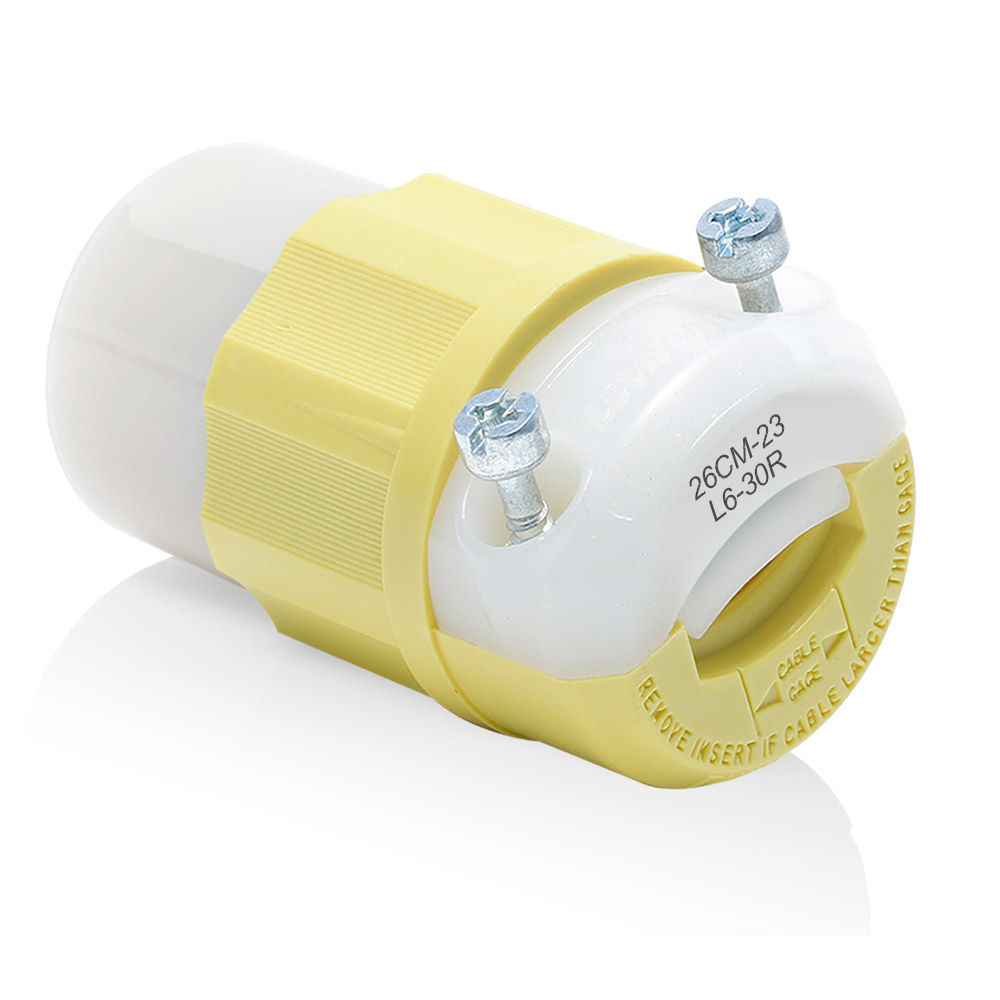

Locking Connector, 30 Amp, 250 Volt, Industrial Grade, Corrosion-Resistant, Yellow & White

Electrical Specifications

Amperage : 30 A

Current Interrupting : Certified for current interrupting at full rated current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Grounding

Pole : 2

Temperature Rise : Max 30C at 250 cycles OL at 200 pct rated current

Voltage : 250 VAC

Wire : 3

Material Specifications

Assembly Screws : Stainless Steel 300

Back Cover : Thermoplastic

Blades/Contacts : Nickel-Plated Brass

Body Material : Super Tough ST801 Nylon

Clamp Insert : Nylon

Color : Yellow-White

Cord-Clamp : Nylon

Face Material : Nylon

Terminal Screws : Nickel-Plated Brass 8-32

Standards and Certifications

ANSI : C-73

NEMA : WD-6

NOM : 057

UL : 498

UL Fed Spec WC-596 : File E13393

Warranty : Limited Lifetime Warranty Warranty

Product Features

Body Material : Super Tough ST801 Nylon

Brand : Black and White

Color : Yellow-White

Cord Range : .218 - .430

NEMA : L6-30R

Mechanical Specifications

Cord Range : .218 - .430

Product ID : Ratings and NEMA I.D. permanently marked on device

Screw Terminal Torque : 10-14 in-lbs

Terminal Accom. : 18-10 AWG

Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

Wire Gauge : 16-8 AWG

Environmental Specifications

Environment : Corrosive

Flammability : Rated V-2 per UL 94

Operating Temperature : -40°C to 60°C
