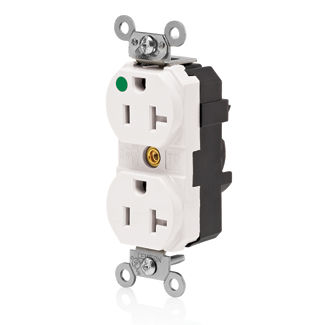

Lev-Lok Duplex Receptacle

Environmental Specifications

Operating Temperature : -40°C to 60°C

Standards and Certifications

ANSI : C-73

CSA : 152105

NEMA : WD-6

NOM : 057

RoHS : Compliant

UL 498 and Fed Spec WD496 : E13399

Warranty : 10-Year Limited

Product Features

Brand : Lev-Lok

Color : White

Device Type : Duplex Receptacle Outlet

Feature : Tamper-Resistant|Illuminated|Smooth Face

Grade : Extra Heavy-Duty Hospital Grade

NEMA : 5-20R

Material Specifications

Body Material : Nylon

Face Material : Nylon

Ground Clips : Brass

Line Contacts : 0.040" Brass

Locking Pins : Solid Brass

Shutter Mechanism : Delrin® Acetal

Strap Material : Nickel Plated Brass

Electrical Specifications

Amperage : 20 A

Current Limiting : Full Rated Current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Self-Grounding

Illumination : 100,000 HR Green LED's

Pole : 2

Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current

Voltage : 125 VAC

Wire : 3

AC Horsepower Ratings

Horsepower Rating : 1 HP

Mechanical Specifications

Lead Identification : Leads identified in accordance with UL 498 (black, white & green)

Product ID : Markings are permanently marked on device

Termination : Modular
