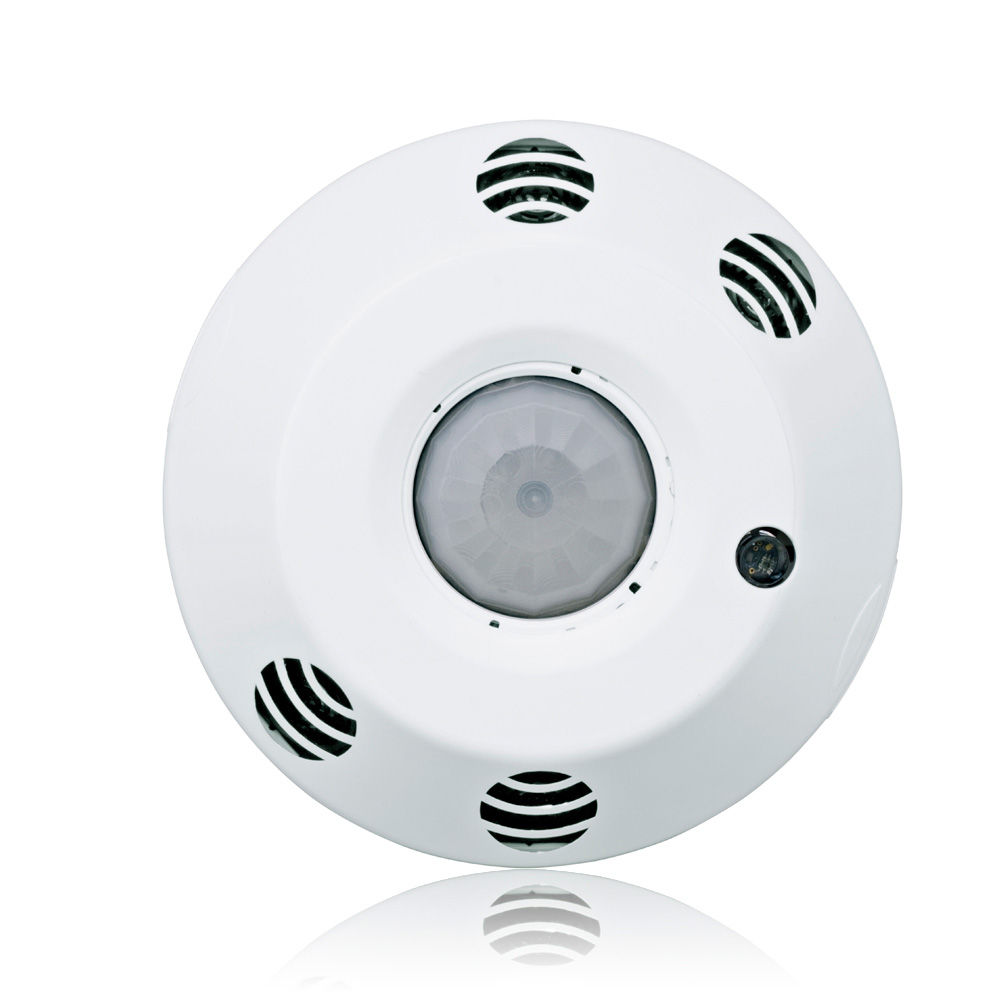

Vacancy Sensor, Line Voltage, Dual Relay, Multi-Tech, Ceiling Mount, 2000SF, 120-277V, Provolt™

O4C20-MDW

DISCONTINUED

Discontinued Product. Vacancy Sensor, Provolt™ lighting control, 2 Pole, Line Voltage, 8'-12' Ceiling, Multi-Technology, 2000 sq ft, Ambient Light Override, Auto-Calibration, 120-277V AC/CA 50/60HZ. UL/CE, RoHS & CEC & Title 20/24 Compliant. Color: White.

The Leviton Provolt™ Dual Relay Vacancy Sensors combine line voltage vacancy sensors into a self-contained unit. The integrated design alleviates the need for separate power pack and vacancy se...

Color: White

UPC Code: 078477642702

Country of Origin : China

RoHS Link: Yes(se abre en una pestaña nueva)

Product Information

Updated

(se abre en una pestaña nueva)

Product Specification and Data Sheet(se abre en una pestaña nueva)

10/08/2023 View(se abre en una pestaña nueva)

Updated

Electrical Specifications
Current Consumption : 60-30mA
Frequency : 50/60Hz
Load Rating : 120V, 50/60Hz: 8A, Electronic Ballast, 800W/VA, Tungsten, Ballast, 1/4 HP Motor - 230V, 50Hz: 6A/6AX, Electronic Ballast, Tungsten Magnetic Ballast, 1/3 HP Motor - 277V, 50/60Hz: 5A, Electronic Ballast, 1200VA, 1/3 HP Motor
Neutral Wire Connection : Required
Title 24 Compliant : Yes
Voltage : 120/230/277 VAC
Warranty
Warranty : 5-Year Limited
Mechanical Specifications
Mounting Type : Ceiling Mount
Relay Type : Dual Relay
Size : Width 4.80" (121.92mm), Depth 2.39" (60.71mm)
Product Features
Application : Code Compliance|Manual ON/Auto OFF
Color : White
Feature : Multi-Technology Line Voltage Dual Relay
Grade : Commercial
Mounting : Ceiling Mount
Product Line : Provolt
Sensor Technology : Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
Sensor Type : Vacancy, Photocell
Time Delay : 30s-30m
Vacancy Sensor : Yes
Type
Product Type : Vacancy Sensor and Photocell
Standards and Certifications
Listings : Can be used to comply with Title 24, Part 6 vacancy sensing requirements, UL 773A (Occupancy Standard), UL 924 (Emergency Equipment), cUL listed, CE compliant, NOM certified, RoHS compliant, NY LLC48 compliant
Environmental Specifications
Operating Temperature : 32° to 104°F (0° to 40°C)
Relative Humidity : 0% to 90% non-condensing
Storage Temperature Range : -15° to 160°F (-26° to 71°C)
Performance Specifications
Coverage (Sq.Ft.) : 2000
Pattern : 360°

Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
Vacancy Sensing Time Outs (Delayed OFF Timer, Exclusive Walk-through Feature, False Detection Timer: (M/T) PIR scans for movement and shuts lights off after 31 minutes of vacancy preventing false triggers from HVAC systems (U/S), Time delay and saved settings are protected during power outages and will return to the last known state
Output short circuit protection
Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
Test Mode for simplified commissioning
Manual Switch and Emergency Override are Class 1 or Class 2 circuits. Class 2 circuits provided for flexibility
Industry-exclusive “fail-safe” circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service
Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
Lenses on PIR models are easily replaceable and color-coded red (mid range) for contractors and end-users to easily identify lenses from the ground
Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays (Red - Blinks when infrared is detecting motion and solid during device malfunction, Yellow - Blinks during test mode; solid with emergency/BMS input, Blue - Blinks when knob settings are changed, Green - Blinks when U/S is detected)
