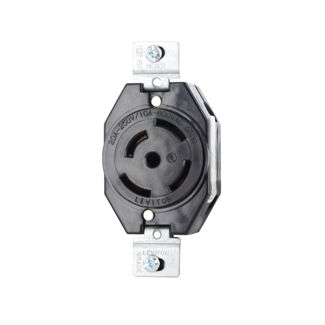

20/10 Amp, 250 Volt, Flush Mounting Locking Receptacle, Industrial Grade

Material Specifications

Base Material : Nylon

Color : Black

Face Material : Nylon

Grounding Screw : Brass 8-32

Line Contacts : Brass .040 Thick

Strap Material : Nickel-Plated Brass

Terminal Screws : Brass 10-32

Yoke : Nickel-Plated Brass .050 Thick

Environmental Specifications

Environment : Dry

Flammability : Rated V-2 per UL 94

Operating Temperature : -40°C to 60°C

Product Features

Color : Black

Device Type : Locking Receptacle

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 42 : File LR-406

NEMA : WD-6

NOM : 057

Warranty : Limited Lifetime Warranty Warranty

Electrical Specifications

Amperage : 20/10 A

Current Limiting : Full Rated Current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Grounding

Pole : 4

Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current

Voltage : 250 VAC

Wire : 5

Mechanical Specifications

Product ID : Ratings and NEMA I.D. permanently marked on device

Screw Terminal Torque : 14-18 in-lbs

Terminal Accom. : 14-8 AWG

Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

Termination : Back & Side
