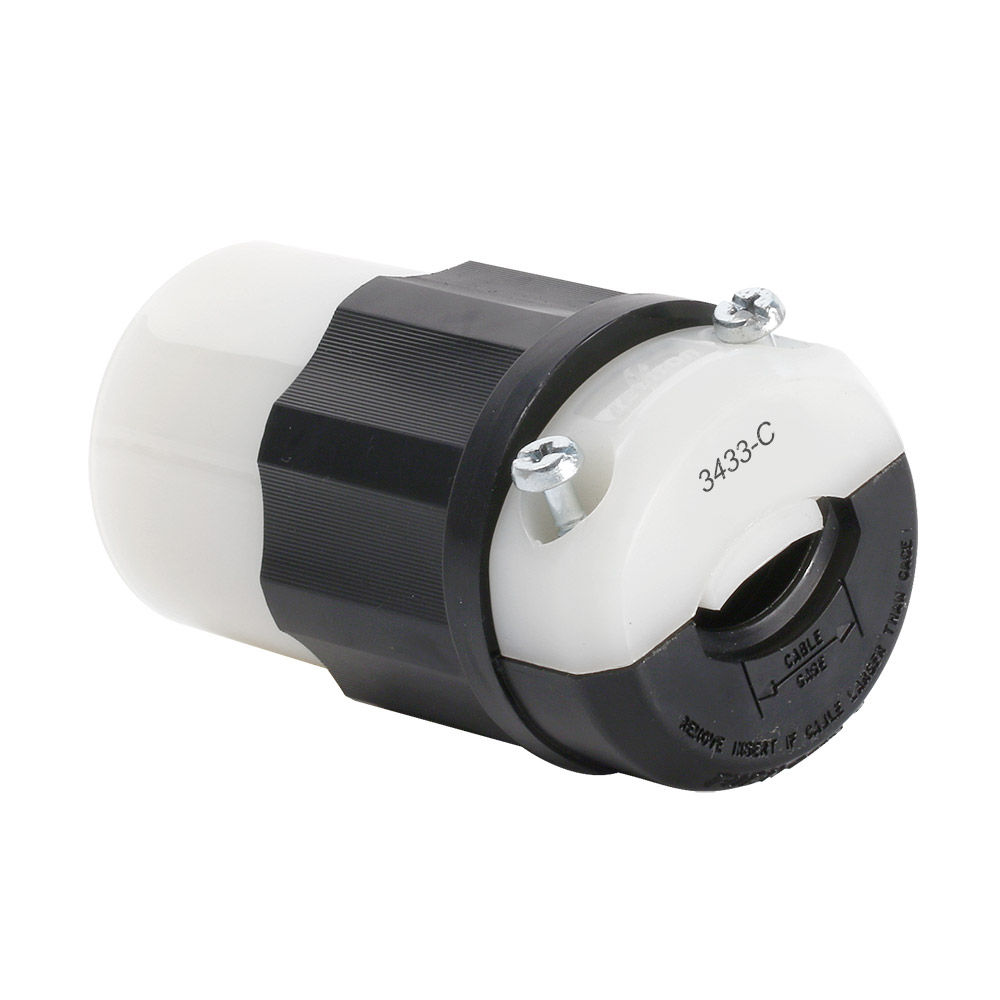

Locking Connector, 30 Amp, 120/208 Volt, Industrial Grade, Black & White

Environmental Specifications

Environment : Dry

Flammability : Rated HB or better UL94

Operating Temperature : -40°C to 60°C

Material Specifications

Assembly Screws : Steel, Zinc Plated

Back Cover : Thermoplastic

Blades/Contacts : Solid Brass

Body Material : Impact Modified Nylon

Clamp Insert : Nylon

Color : Black-White

Cord-Clamp : Nylon

Terminal Screws : Brass

Wire Module : Nylon

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 42 : File LR-406

NEMA : WD-6

NOM : 057

UL498 : File E13393

Warranty : Limited Lifetime Warranty Warranty

Product Features

Brand : Black and White

Color : Black-White

Wire Gauge : 14-8 AWG

Mechanical Specifications

Amperage : 30 A

Cord Range : .595 - 1.150

Current Interrupting : Certified for current interrupting at full rated current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Non-Grounding

Phase : 3-Phase WYE

Pole : 4

Product ID : Ratings and NEMA I.D. permanently marked on device

Temperature Rise : Max 30C at 250 cycles OL at 200 pct rated current

Terminal Accom. : 18-10 AWG

Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

Torque Range : 10-14 in-lbs

Voltage : 120/208 VAC

Wire : 4

Wire Gauge : 14-8 AWG
