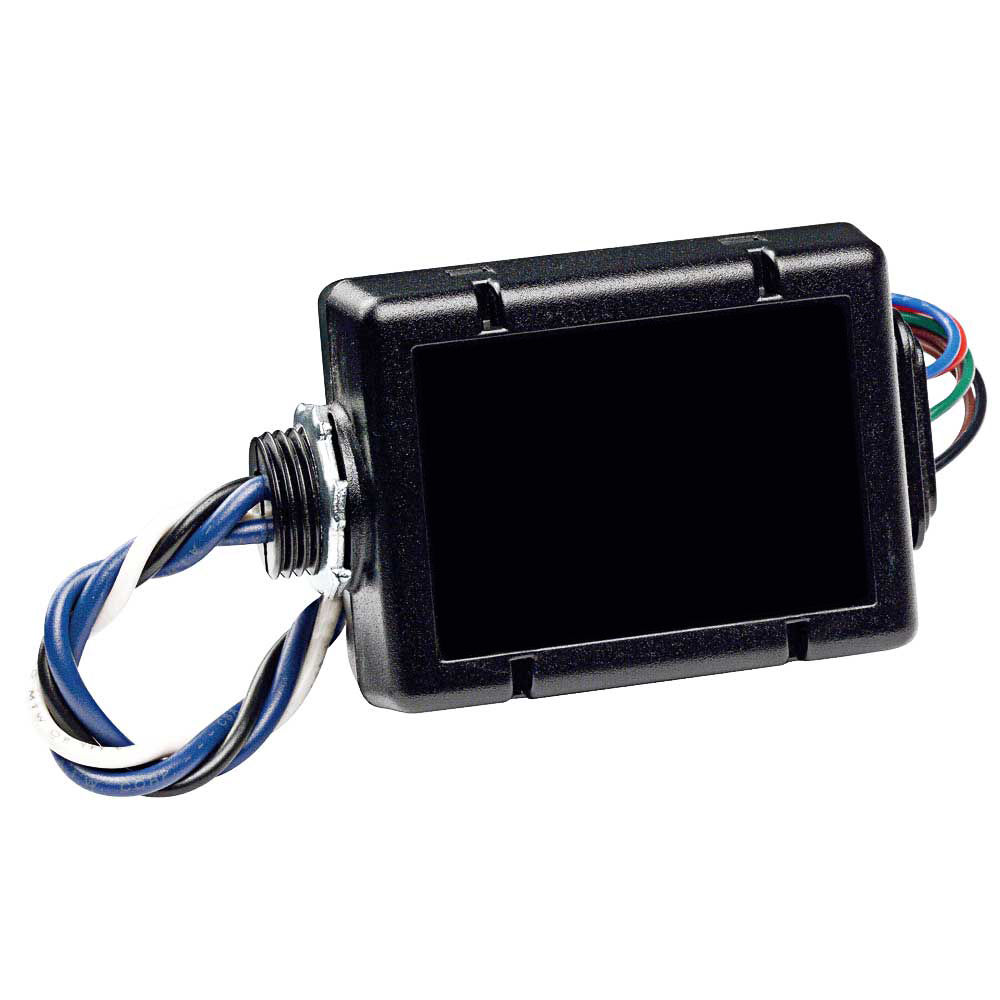

Occupancy Sensor Power Pack, Add-A-Relay, 15 amp, Made in USA with globally sourced components

Product Features

Application : Anywhere optimal lighting and energy savings are desired, Load shed/interface hold-OFF applications, Retail hold-ON/bypass applications

Color : Black

Grade : Commercial

Made in USA : Made in USA with globally sourced components

Product Line : OSA20

Sensor Type : Accessory

Warranty

Warranty : 5-Year Limited

Mechanical Specifications

Construction : Case: High impact, UL rated plastic - Relay: Class B (130°C) insulating material; silver alloy contacts - Wire: 6" leads, 18AWG input; LV connections: 7" leads 22AWG

Relay Type : HVAC Relay

Size : Height 2.40" (60.96mm), Width 3.811" (96.80mm), Depth 1.432" (36.37mm)

Standards and Certifications

Listings : UL/CUL Listed, FCC Certified, NOM Certified, meets energy code requirements for ASHRAE Standard 90.1

USMCA Compliant : Yes

Environmental Specifications

Relative Humidity : 0% to 95% non-condensing

Type

Product Type : Power Pack

Electrical Specifications

Control Input : 5mA, 24VDC

Frequency : 50/60Hz

Load Rating : 15A incandescent @ 120V, 20A - fluorescent @ 120V, 20A - fluorescent @ 277V, 15A - fluorescent @ 347V; HVAC: 0.5A @ 120VAC, 1A @ 30VDC

Neutral Wire Connection : Required

Title 24 Compliant : Yes

Voltage : 120/230/277 VAC
