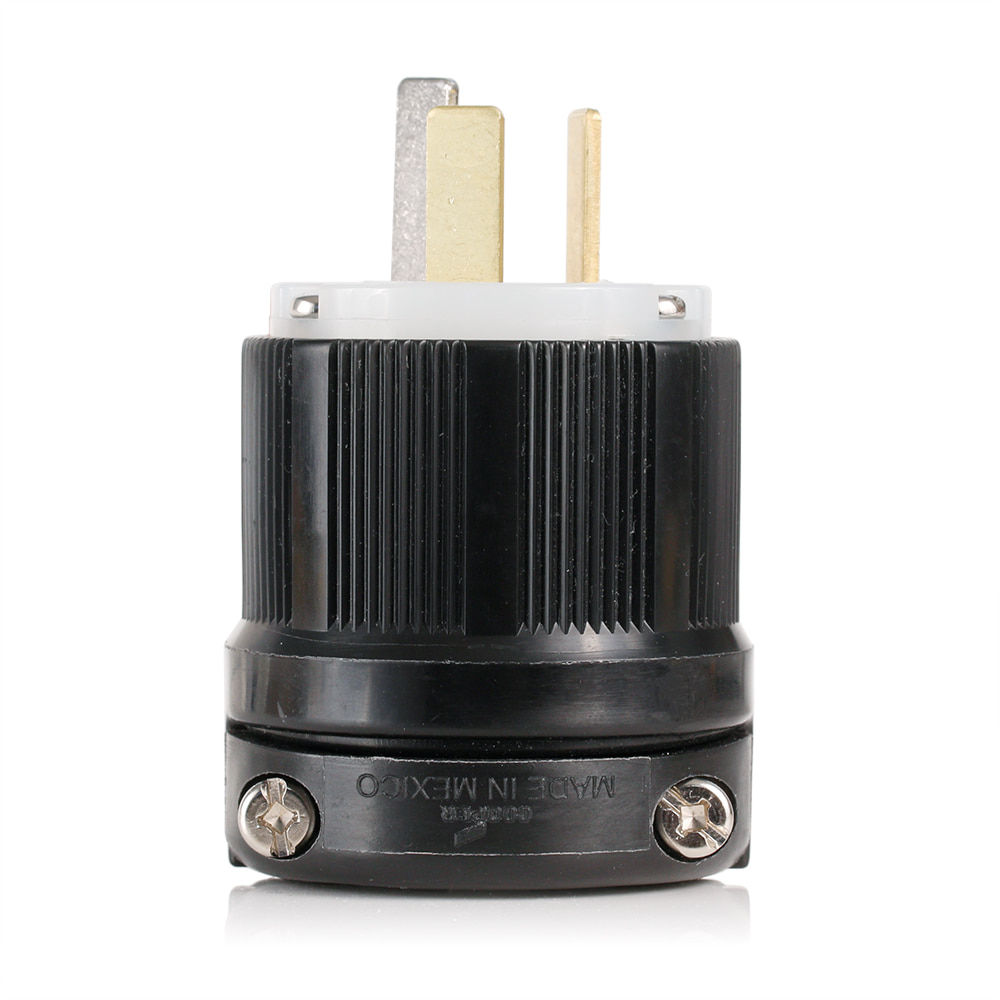

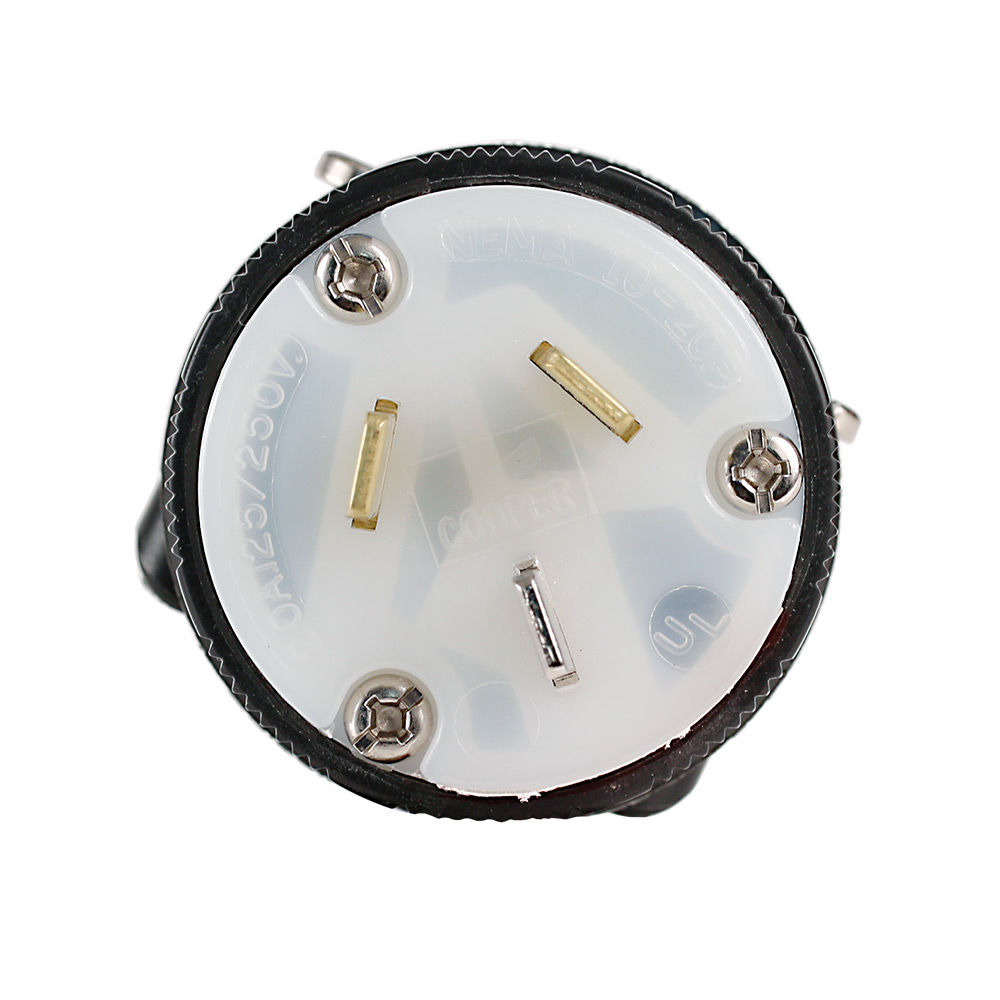

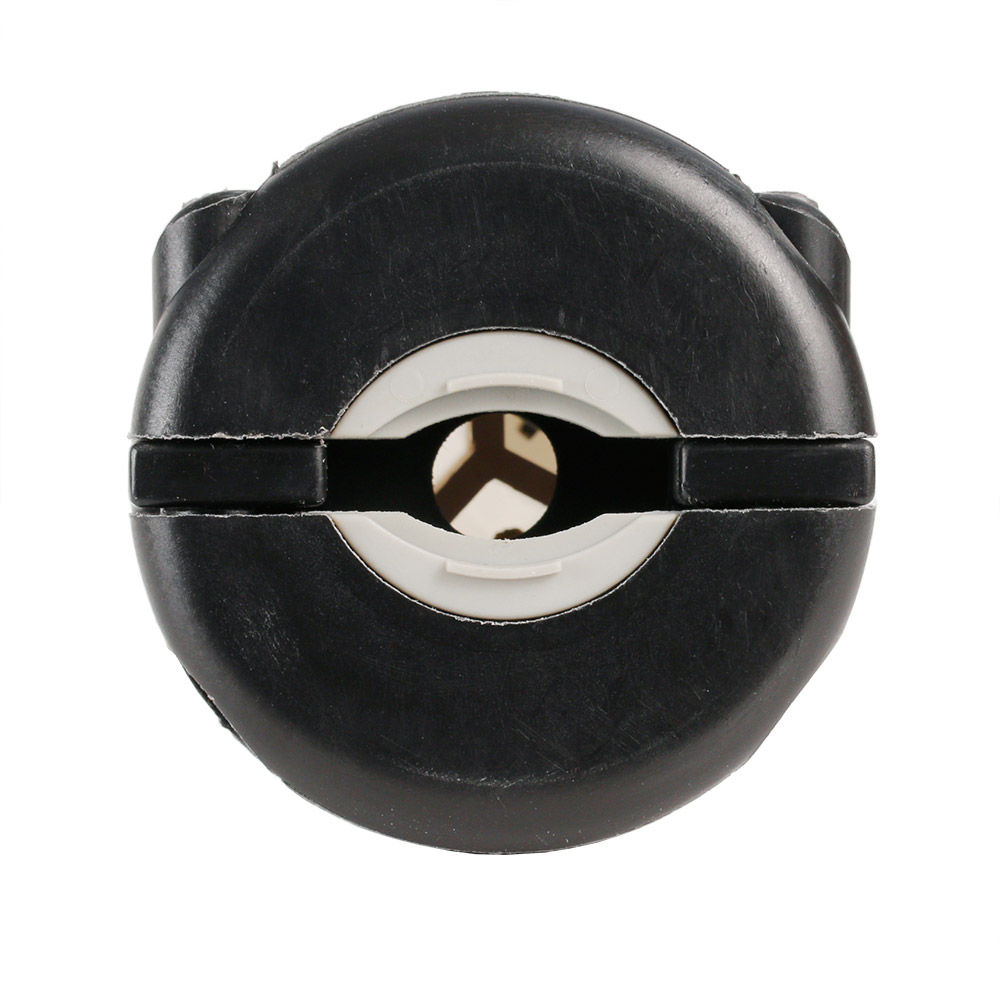

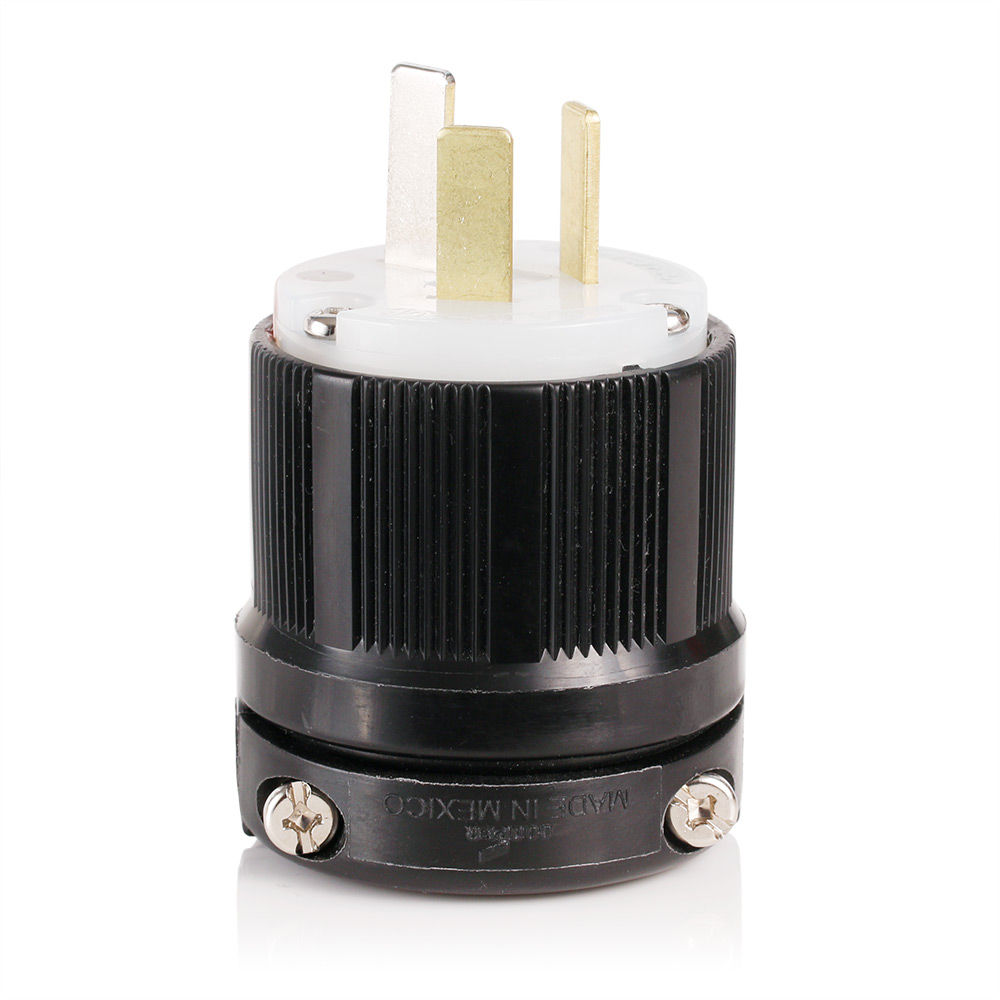

20 Amp, 125/250 Volt, Straight Blade Plug, Industrial Grade
9151-N
20 Amp, 125/250 Volt, NEMA 10-20P, 3P, 3W, Plug, Straight Blade, Industrial Grade, Non-Grounding, - Black
Leviton offers industrial, commercial and residential plugs and connectors for unlimited application settings. Plugs and connectors are provided in a range of ratings from 15 Amps to 60 Amps; the product line includes straight-blade and locking devices in all NEMA configurations, as well as locking devices in non-NEMA configurations. Versions inc...
20 Amp, 125/250 Volt, NEMA 10-20P, 3P, 3W, Plug, Straight Blade, Industrial Grade, Non-Grounding, - Black
Leviton offers industrial, commercial and residential plugs and connectors for unlimited application settings. Plugs and connectors are provided in a range of ratings from 15 Amps to 60 Amps; the product line includes straight-blade and locking devices in all NEMA configurations, as well as locking devices in non-NEMA configurations. Versions include Hospital Grade, isolated ground, WetGuard, Dustguard, Python, power plugs, corrosion resistant plugs and connectors, power-interrupting devices, midget devices, and much more.
Product ID : Ratings are permanently marked on device
Terminal Accom. : 18-10 AWG
Terminal ID : Brass-Hot, Green-Ground, White-Neutral
Torque Range : 10-14 in-lbs
Wire Gauge : 18-10 AWG
Electrical Specifications
Amperage : 20 A
Current Limiting : Full Rated Current
Dielectric Voltage : Withstands 2000V per UL498
Grounding : Non-Grounding
Pole : 3
Temperature Rise : Max 30C after 50 cycles OL at 150 percent rated current
Wire : 3
Material Specifications
Assembly Screws : Steel, Zinc Plated
Blades/Contacts : Solid Brass
Body Material : Super Tough Nylon
Color : Black
AC Horsepower Ratings
At Rated Voltage : 2 HP L-L / 1 HP L-N
Standards and Certifications
ANSI : C-73
CSA C22.2 No. 42 : File LR-406
NOM : 057
UL498 : File E13393
Warranty : Limited Lifetime Warranty Warranty
Product Features
Color : Black
Cord Range : .625 - 1.375|.625 - 1.375
NEMA : 10-20P
