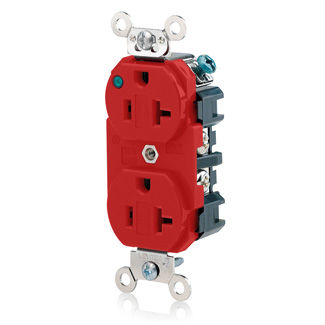

20 Amp Duplex Receptacle/Outlet, Hospital Grade, Power Indication, Self-Grounding

Product Features

Color : Red

Device Type : Duplex Receptacle Outlet

Feature 3 : Power Indication

Feature 4 : Smooth Face

Grade : Extra Heavy-Duty Hospital Grade

Grounding : Self-Grounding

NEMA : 5-20R

Strap Material : Brass

Termination : Back or Side Wire

Warranty : 10-Year Limited

Electrical Specifications

Amperage : 20 A

Current Limiting : Full Rated Current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Self-Grounding

Pole : 2

Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current

Voltage : 125 VAC

Wire : 3

Mechanical Specifications

Product ID : Markings are permanently marked on device

Screw Terminal Torque : 14-18 in-lbs

Terminal Accom. : 14-10 AWG

Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

Termination : Back or Side Wire

Torque Range : 14-16 inch pounds

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 42 : File 152105

NEMA : WD-6

NOM : 057

RoHS : Non-Compliant

UL Fed Spec WC-596 : File E13399

UL498HG : File E13399

Warranty : 10-Year Limited

AC Horsepower Ratings

Horsepower Rating : 1 HP

Environmental Specifications

Flammability : Rated V-2 per UL94

Operating Temperature : -40°C to 60°C

Material Specifications

Body Material : Nylon

Clamp Nuts : Zinc-Plated Steel

Color : Red

Face Material : Nylon

Ground Clips : Nickel-Plated Brass

Grounding Screw : Plated Brass

Line Contacts : Nickel-Plated Brass Triple-Wipe .040 Thick

Strap Material : Brass

Terminal Screws : Plated Brass

Yoke : Nickel-Plated Brass
