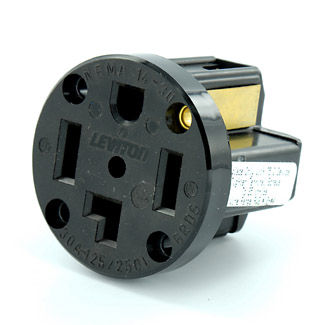

30 Amp, 125/250 Volt, NEMA 14-30R, 3P, 4W, Panel Mtg Outlet/Receptacle, Straight Blade, Industrial Grade, Grounding, , Side Wired, Strap, Black

Environmental Specifications

Flammability : Rated V-2 per UL 94

Operating Temperature : -40°C to 60°C

Material Specifications

Body Material : Nylon

Color : Black

Face Material : Nylon

Line Contacts : Brass Double-Wipe

Strap Material : Galvanized Steel

Electrical Specifications

Amperage : 30 A

Current Limiting : Full Rated Current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Grounding

Pole : 3

Temperature Rise : Max 30C after 50 cycles OL at 150 percent rated current

Voltage : 125/250 VAC

Wire : 4

Mechanical Specifications

Product ID : Ratings are permanently marked on device

Terminal Accom. : Up to 4 AWG

Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

Product Features

Amperage : 30 A

Color : Black

NEMA : 14-30R

Voltage : 125/250 VAC

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 42 : File 152105

NEMA : WD-6

NOM : 057

UL498 : File E13399

Warranty : 10-Year Limited

AC Horsepower Ratings

At Rated Voltage : 2 HP
