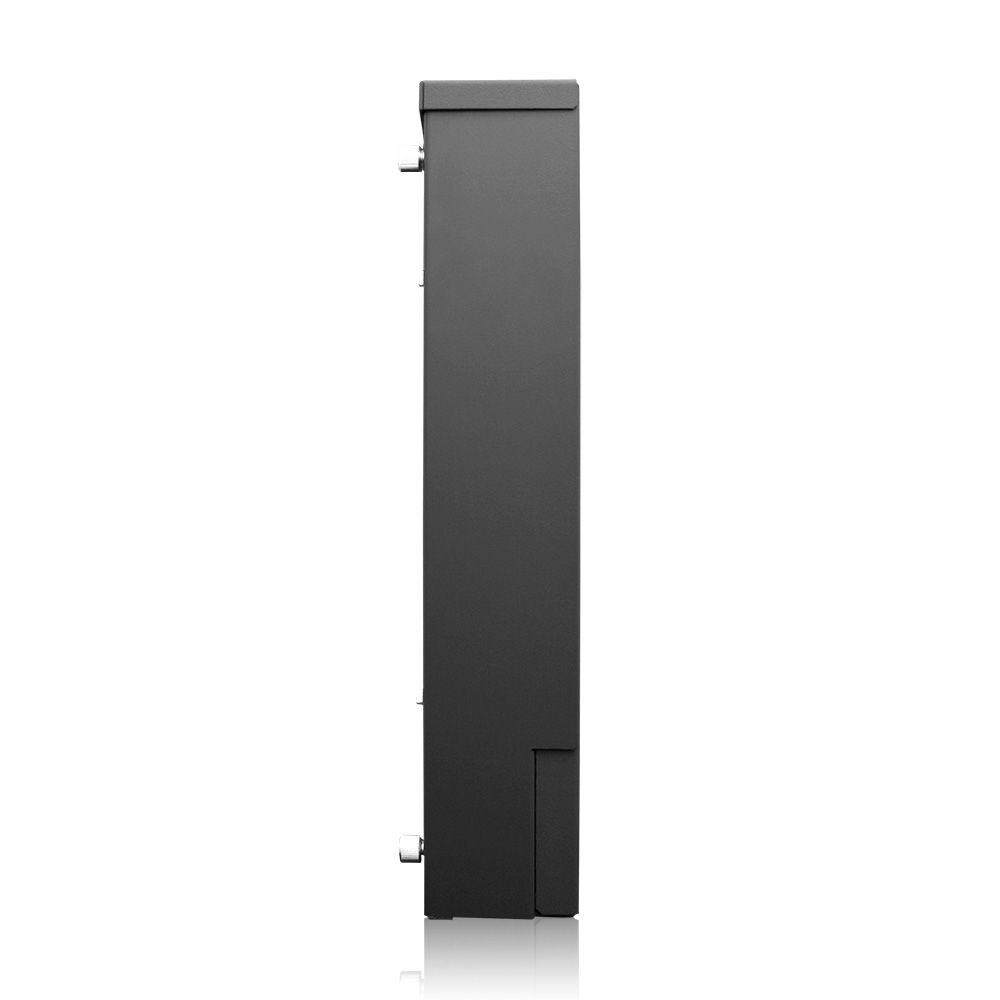

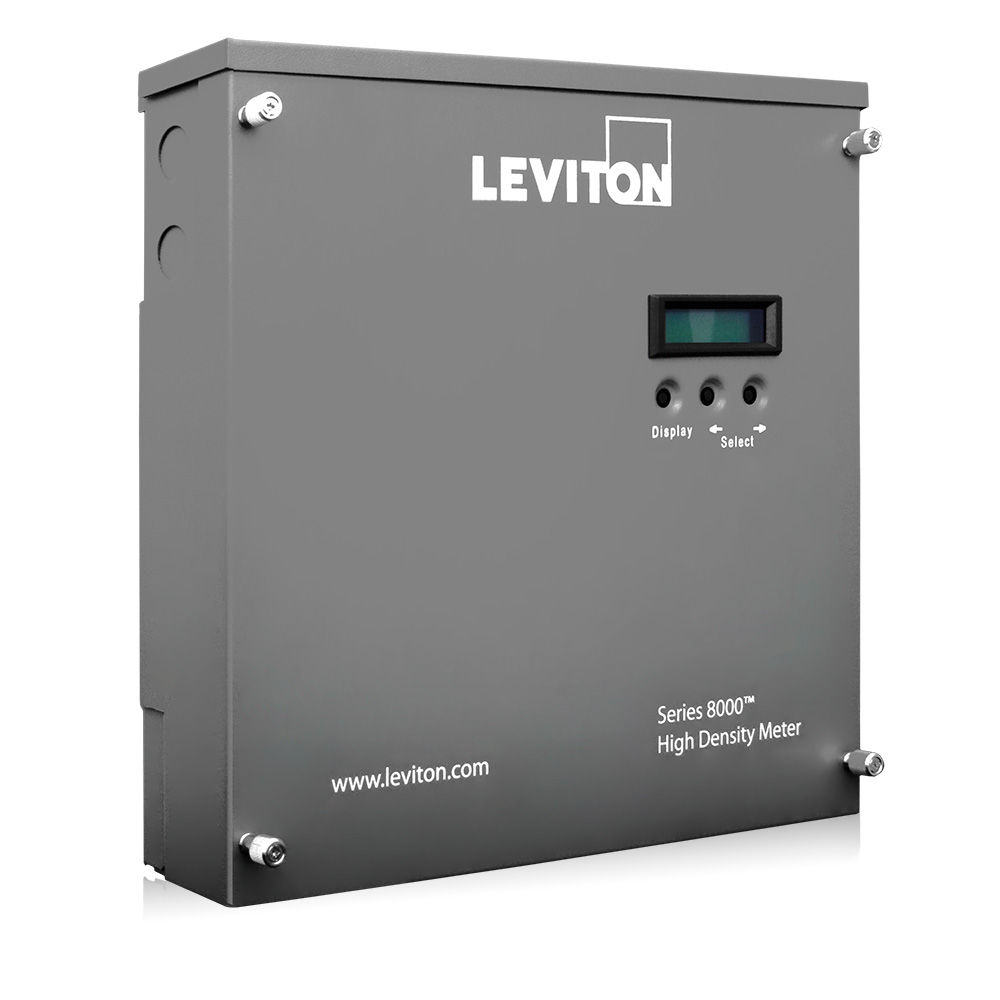

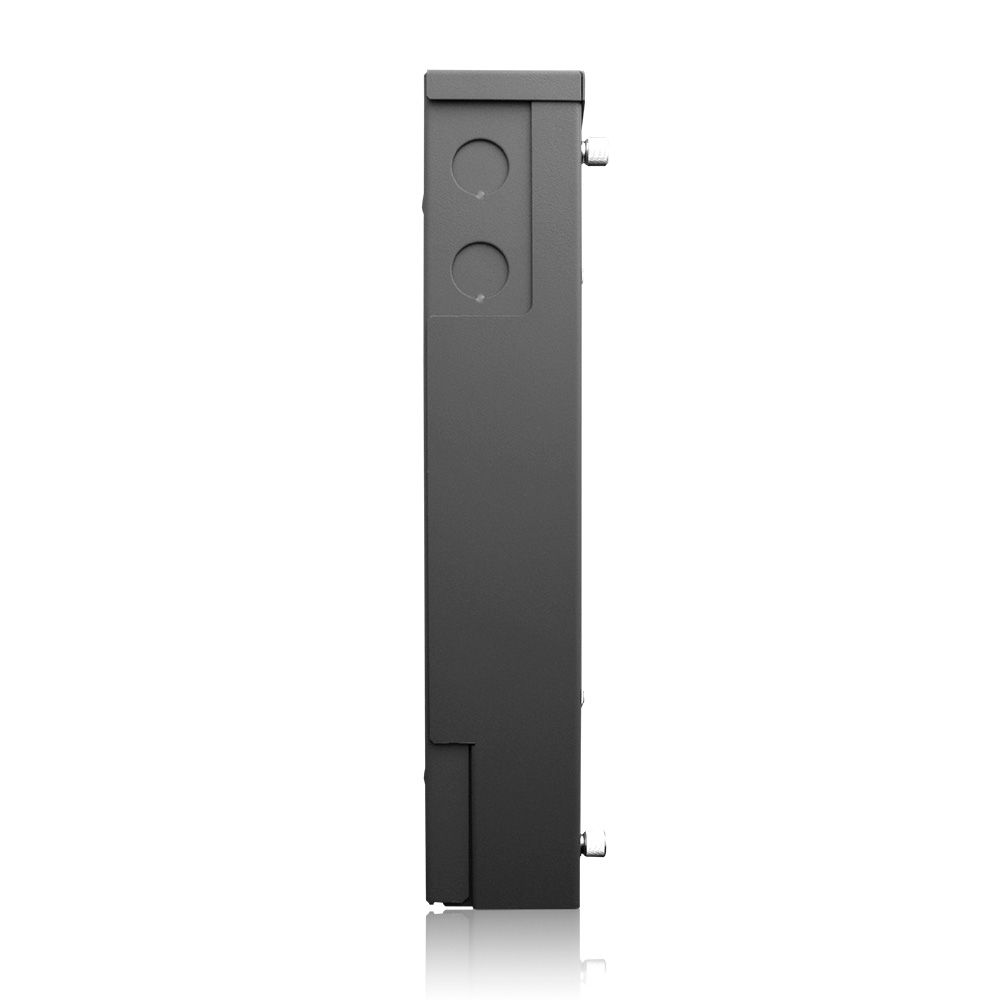

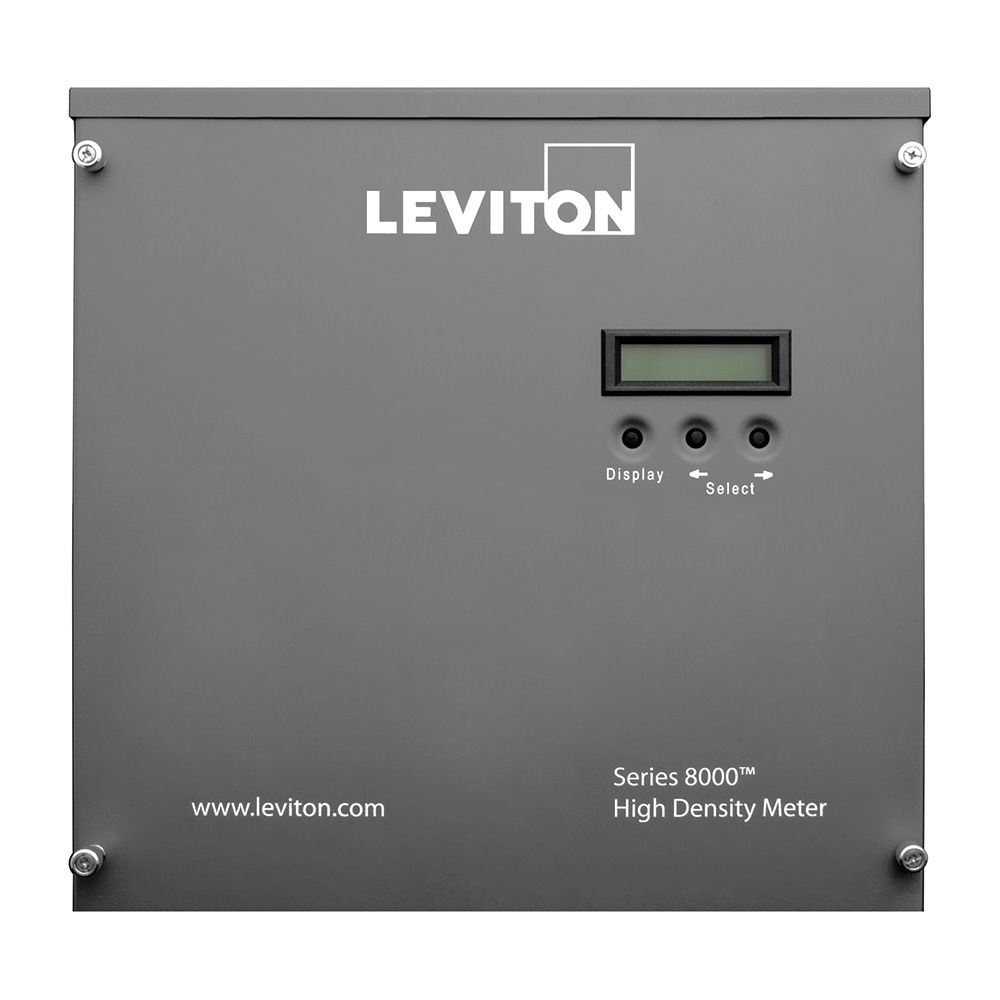

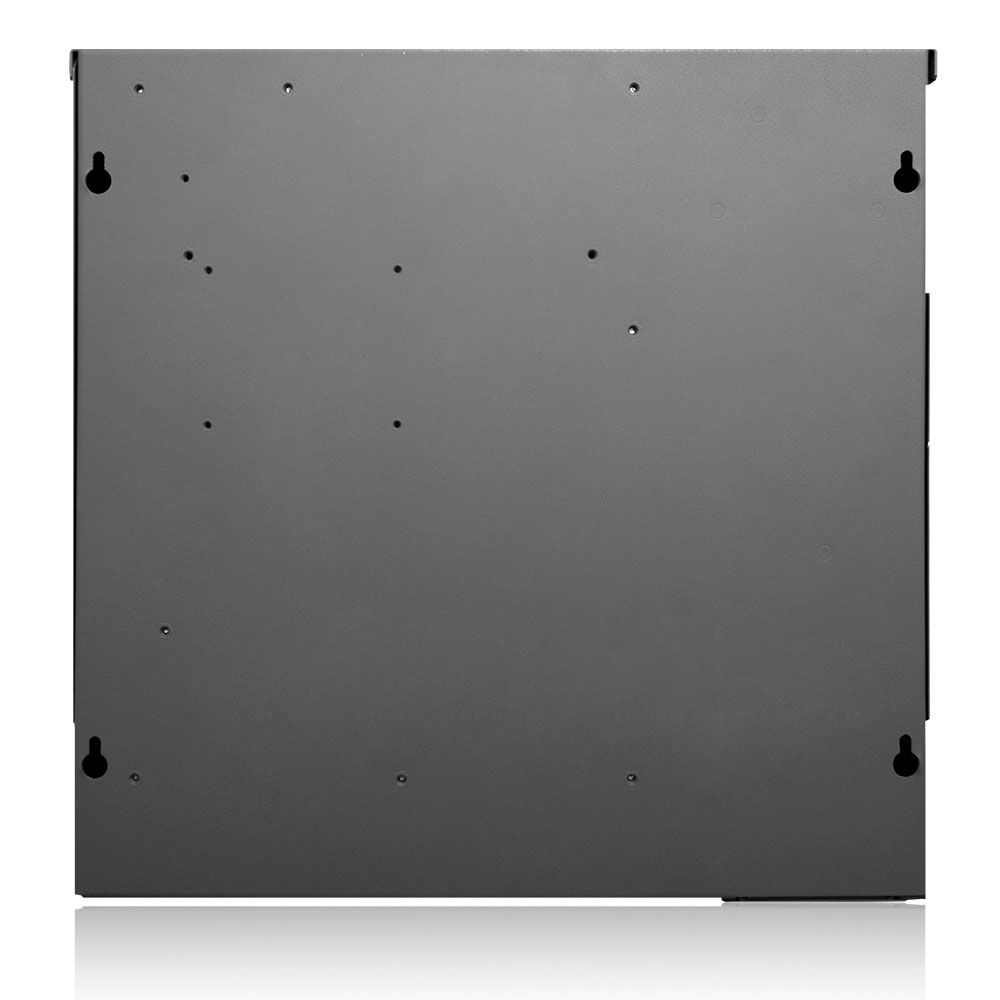

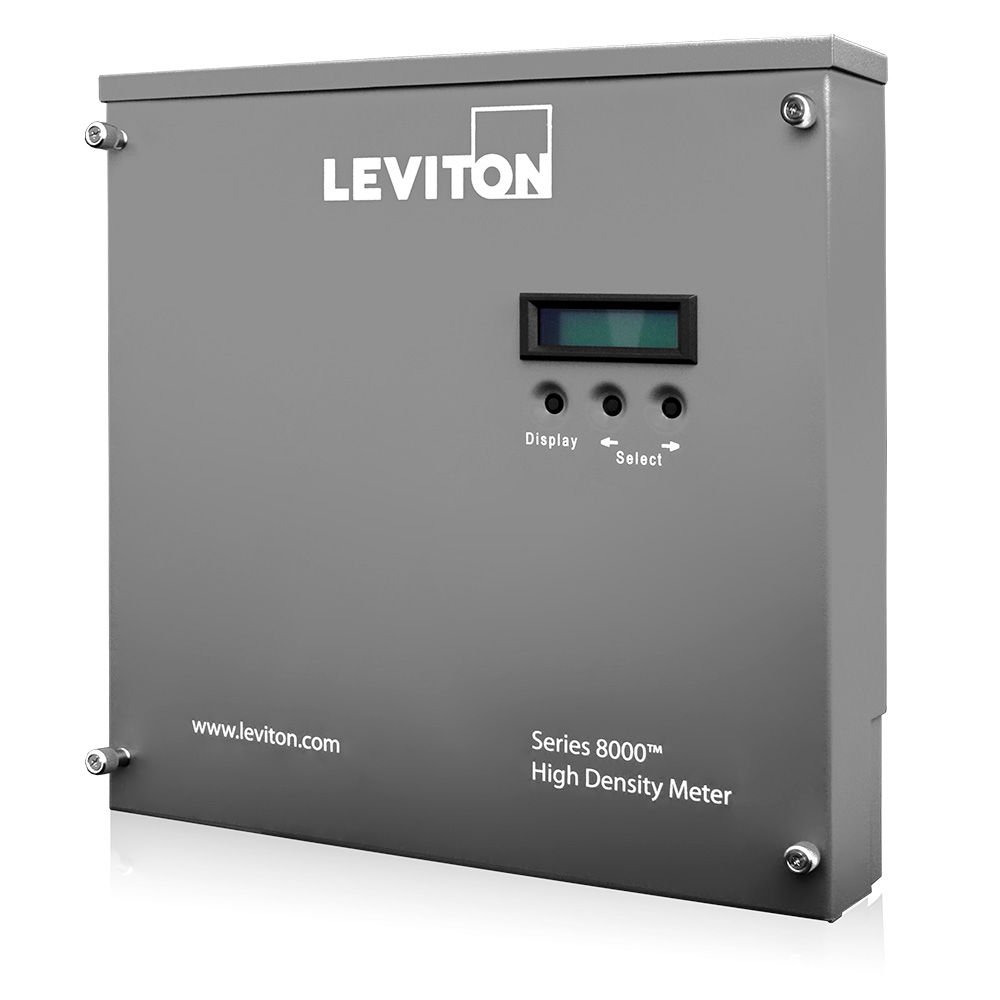

Submeter, Indoor, 277/480V, Phase Config 8x3, 12x2, 24x1 with Terminal Strips, Electric Meter, Multiple Point High Density Smart Meter

Electrical Specifications

Voltage : 277/480 VAC

Mechanical Specifications

Dimensions : 13” (33cm) Height x 11.8”(16.9”) (30.5 cm) Width x 2” (5cm) Depth

Enclosure : Indoor

Weight : 14 lbs (6.35kg), 21 lbs (9.52Kg)

Environmental Specifications

Altitude : 9843 ft (3000m) maximum

Operating Humidity : 0 to 90% non-condensing

Operating Temperature : -40°C to 70°C

Communcation Specifications

Ports : Single 10/100BASE-T Ethernet, RS-232

Protocol : ModBus TCP/IP, DHCP, HTTP, PPP, SNTP, FTP, ModBus TCP, ModBus RTU (RS-485), BACnet IP

Product Features

Application : Multi-tenant office buildings|Medium-sized retail|Institutional|Multi-tenant residential and other high density applications

CTs Included : No - Submeter Only

Listings : (EMC): FCC Part 15 Class A, ICES-003, IEC6100-4-5, TUV and UL certified to IEC/EA/UL/CSA - 61010-1 2nd Edition CSA-C22.2 No. 61010-1-04, ANSI/C12.20 0.5 Class, California Weights and Measures Approved

Meter Configuration : Branch Circuit Monitor

Product Line : Series 8000

Product Type : Electric Submeter

Warranty : 5-Year Limited
