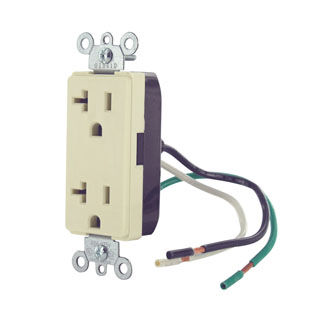

20 Amp Decora Plus Duplex Receptacle/Outlet, Commercial Grade, Self-Grounding

Product Features

Device Type : Duplex Receptacle Outlet

Feature : Smooth Face

NEMA : 5-20R

Electrical Specifications

Amperage : 20 A

Current Limiting : Full Rated Current

Dielectric Voltage : Withstands 2000V per UL498

Grounding : Self-Grounding

NEMA : WD-1, WD-6

Pole : 2

Temperature Rise : Max 30C after 250 cycles OL at 200 percent rated current

Voltage : 125 VAC

Wire : 3

Standards and Certifications

ANSI : C-73

CSA C22.2 No. 42 : File LR-406

NEMA : 5-20R

Warranty : 10-Year Limited

Mechanical Specifications

Product ID : Ratings are permanently marked on device

Terminal Accom. : 14-10 AWG

Terminal ID : Brass-Hot, Green-Ground, Silver-Neutral

Termination : Back or Side Wire

Environmental Specifications

Flammability : Rated V-2 per UL 94

AC Horsepower Ratings

At Rated Voltage : 1 HP

Material Specifications

Body Material : Thermoplastic Nylon

Clamp Nuts : Zinc-Plated Steel

Face Material : Thermoplastic Nylon

Ground Clips : Brass-Plated

Grounding Screw : Brass 10-32

Line Contacts : Brass Triple-Wipe .031 Thick

Strap Material : Zinc-Plated Steel
